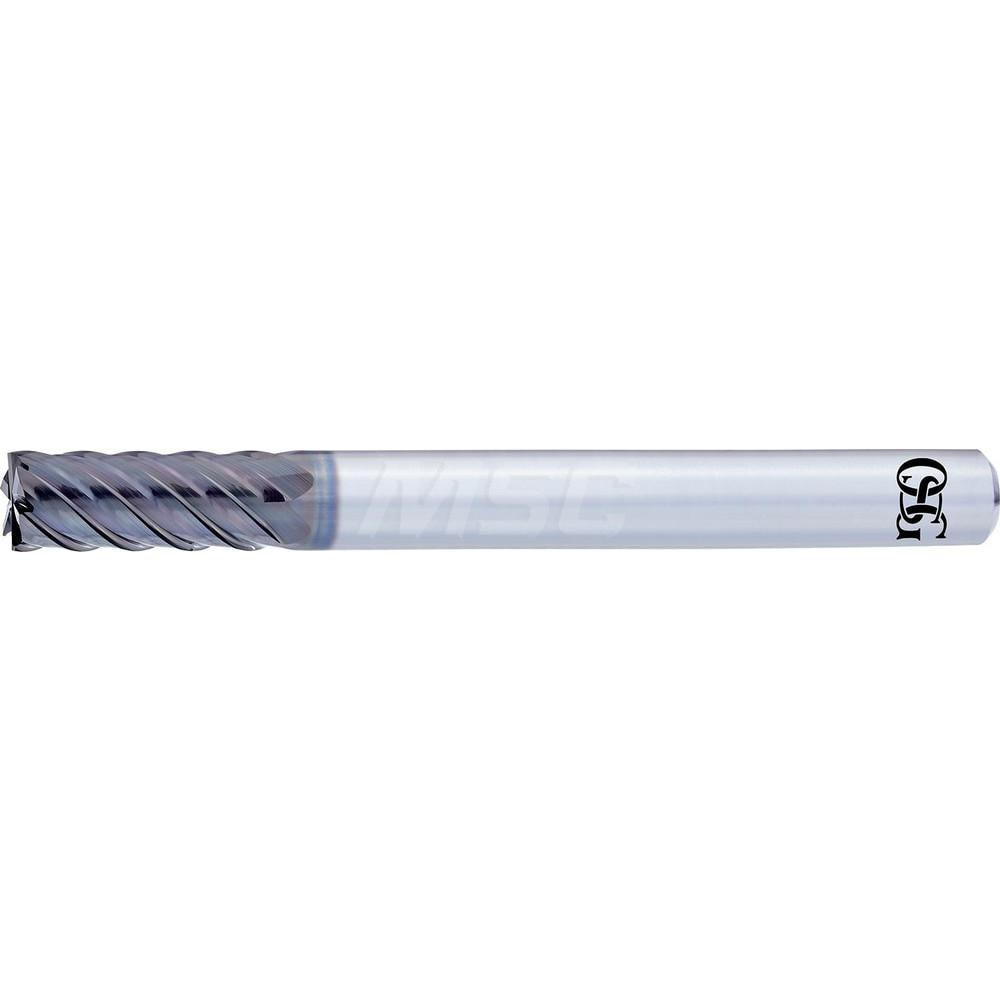

Square End Mill: 5/16" Dia, 25/32" LOC, 6 Flute, Solid Carbide
Item #: 17567868
Brand: OSG
Model #: 84401023
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3125 |
| Mill Diameter (Inch) | 5/16 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.7813 |
| Length of Cut (Inch) | 25/32 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 2.7500 |
| Overall Length (Inch) | 2-3/4 |
| Single Or Double End | Single |
| Coating/Finish Family | DUROREY |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 43 |
| Primary Workpiece Material | Hardened Materials |
| Primary Workpiece Material Code | H |
| Coating/Finish | DUROREY |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 0.8000 |
| Series | 8440 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
