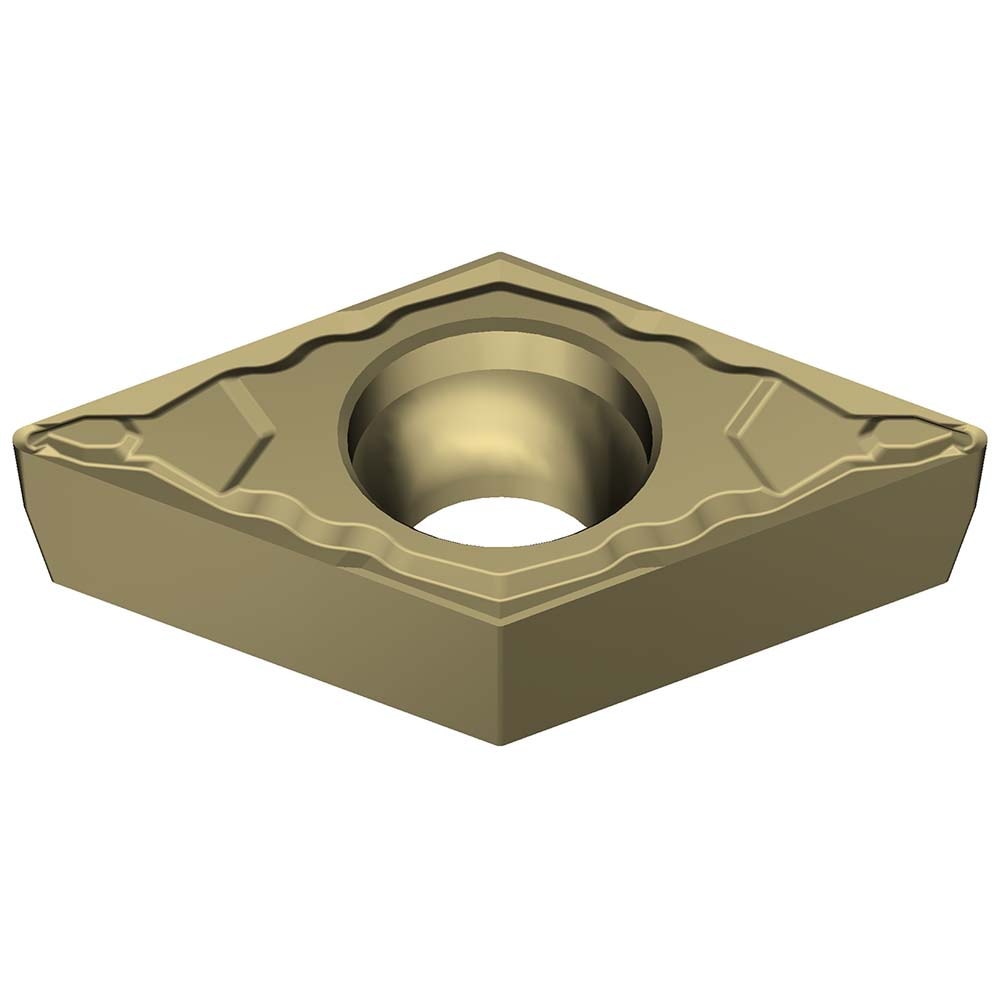

Turning Insert: DCMT32.51ELU AC8020P, Carbide
Item #: 19642495
Brand: Sumitomo
Model #: 19W1BUW
Product Specifications
| ANSI Insert Code | DCMT32.51 |
| ISO Insert Code | DCMT11T304 |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | AC8020P |
| Coating/Finish | Absotech |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | AC8020P |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Insert Shape Code | D |
| Insert Holding Method | Screw-On |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4567 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Steel |
| Iso Code | DCMT11T304N-LU |
| Manufacturers Catalog Number | DCMT32.51ELU-AC8020P |
| Material Grade | P20 |
| Chip Breaker | ELU |
| ANSI Size Code | 32.51 |
| ISO Size Code | 11T304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
