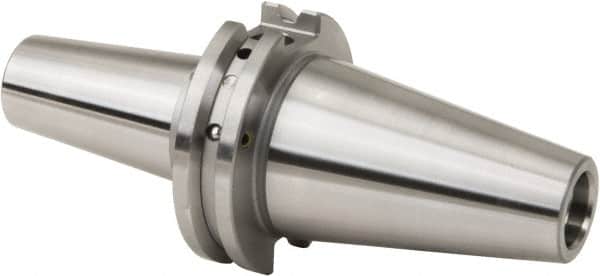

HAIMER - 1" Hole Diam, CAT40 Taper Shank Shrink Fit Tool Holder & Adapter - 160.02mm Projection, 43.94mm Nose Diam, 57.91mm Clamping Depth, 25,000 RPM, Through Coolant
Item #: 61772166
Brand: HAIMER
Model #: 40.842.1Z.4
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Hole Diameter (mm) | 25.40 |
| Hole Diameter (Inch) | 1 |
| Projection (mm) | 160.02 |
| Projection (Decimal Inch) | 6.3000 |
| Nose Diameter (mm) | 43.94 |
| Nose Diameter (Decimal Inch) | 1.7300 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 57.91 |
| Clamping Depth (Decimal Inch) | 2.2800 |
| Overall Length (mm) | 160.02 |
| Overall Length (Decimal Inch) | 6.3000 |
| Balanced to (RPM) | 25000 |
| Additional Information | With Cool Jet & Resealable Bores |
| Series | Standard |
