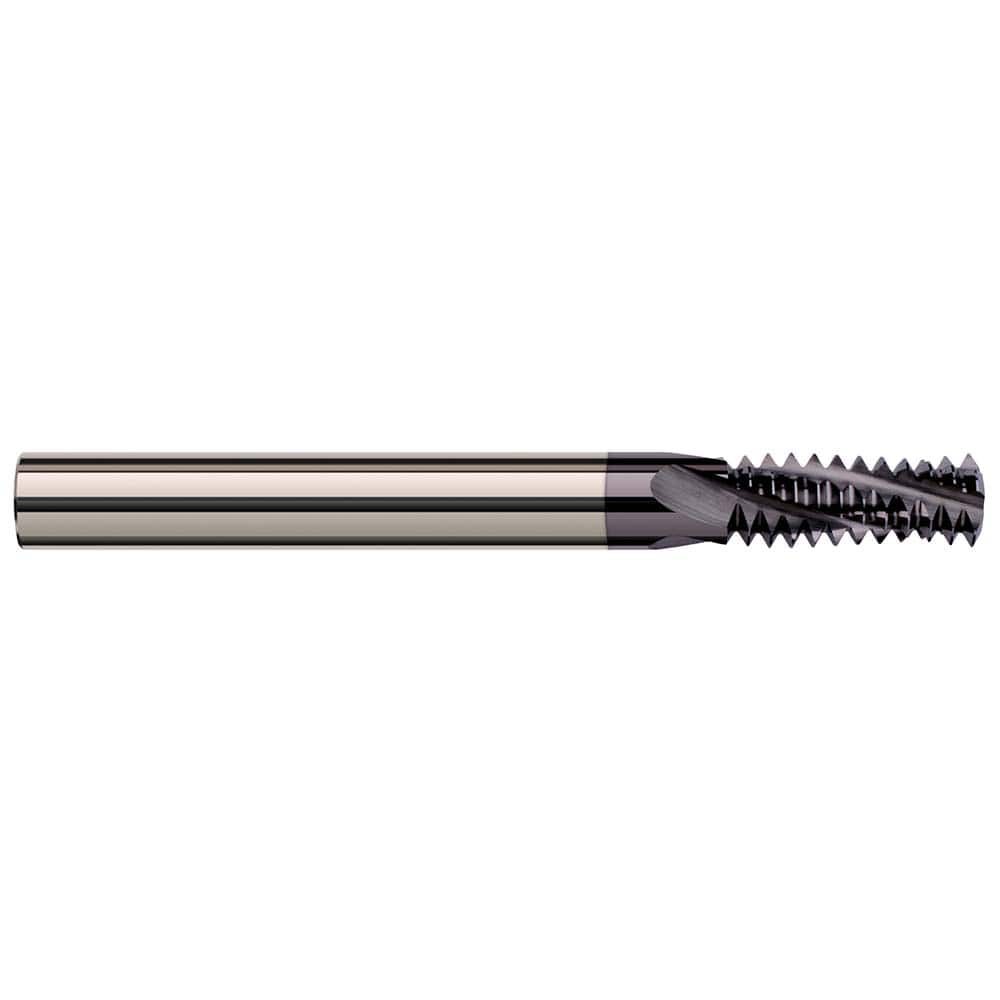

Harvey Tool - 1 - 11-1/2 to 2 - 11-1/2 Internal/External 11.5 TPI 5/8" Shank 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 61678488
Brand: Harvey Tool
Model #: 70232-C3
Product Specifications
| Threads Per Inch | 11.5 |
| Material | Solid Carbide |
| Thread Size (Inch) | 1 - 11-1/2 to 2 - 11-1/2 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.6200 |
| Length of Cut (Decimal Inch) | 1.1250 |
| Length of Cut (Inch) | 1-1/8 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter | 1 |
| Minimum Nominal Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 4.00000 |
| Overall Length (Inch) | 4 |
