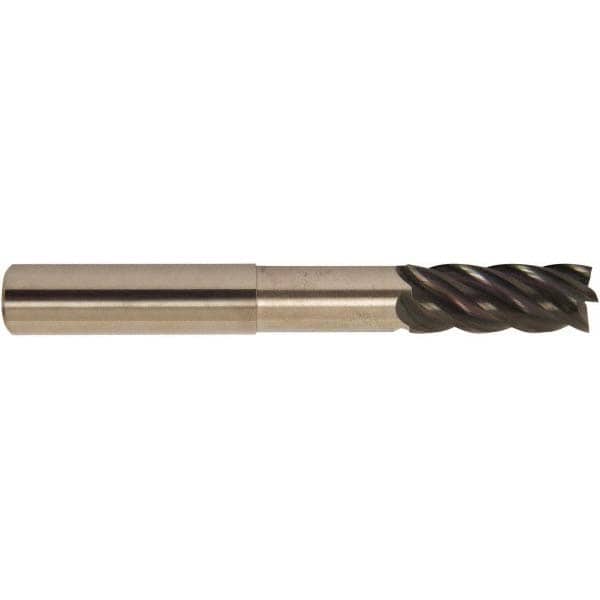

Corner Radius End Mill: 1/2" Dia, 5/8" LOC, 38 deg Helix, Corner Radius End, Centercutting Series HS
Item #: 42515452
Brand: Accupro
Model #: 312233
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 15.87 |
| Length of Cut (Inch) | 5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlCrTiN |
| Overall Length (Inch) | 6 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0200 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 152.4 |
| Overall Length (Decimal Inch) | 6.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (mm) | 12.70 |
| Neck Diameter (mm) | 0.47 |
| Neck Diameter (Decimal Inch) | 0.4750 |
| Reach Length (Decimal Inch) | 4.1250 |
| Reach Length (Inch) | 4-1/8 |
| Mill Diameter Tolerance | +0.000000/-0.001000 in |
| UNSPSC Code | 27112803 |
| Material Grade | Micrograin |
| Series | HS |
