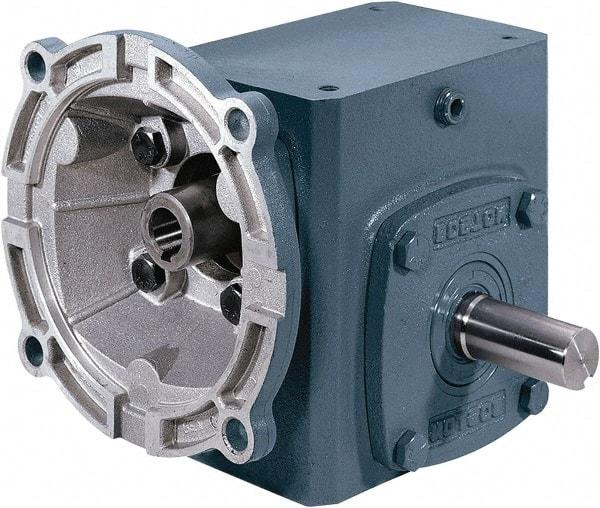

Boston Gear - 3-3/4 Centerline Distance, 40:1, 44 RPM Output, 3.33 Input Horsepower, 3,747 Lbs. Max Torque, Speed Reducer - Part No. F738-40-B7-J, 1-5/8" Shaft Diam, Single Shaft Right, 7/8" Bore, 10.44" High, 140TC NEMA
Item #: 61571493
Brand: Boston Gear
Model #: H00742
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.750 |
| Ratio | 40:1 |
| NEMA Size | 140TC |
| PartNo | F738-40-B7-J |
| Shaft Style | Single Shaft Right |
| Bore Size (Decimal Inch) | 0.875 |
| Shaft Diameter (Decimal Inch) | 1.6250 |
| Height (Inch) | 10.44 |
| Maximum Torque Inch/Lbs (Pounds) | 3747.00 |
| Maximum Input Horsepower | 3.33 |
| Output RPM at 1750 Input | 44.0 |
