Turning Insert: CCGT21.5.5FN-27 H10T, Carbide
Item #: 26233999
Brand: Ceratizit
Model #: 70254600

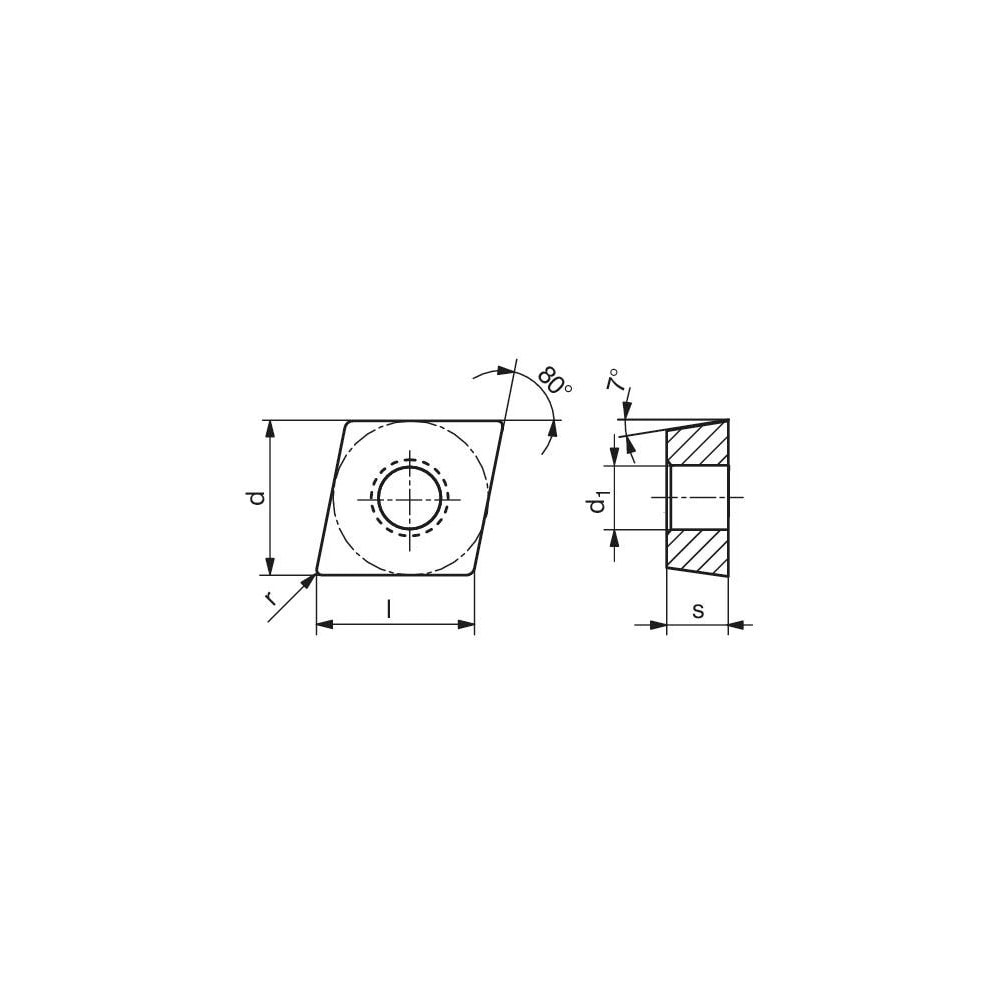

Product Specifications
| ANSI Insert Code | CCGT21.5.5 |
| ISO Insert Code | CCGT060202 |
| Relief Angle | 7 |
| Insert Style | CCGT |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 80 |
| Manufacturer Grade | H10T |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | CCGT |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Iso Code | CCGT 060202FN-27 H10T |
| Chip Breaker | 27 |
| ANSI Size Code | 21.5.5 |
| ISO Size Code | 060202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.5.5 |
