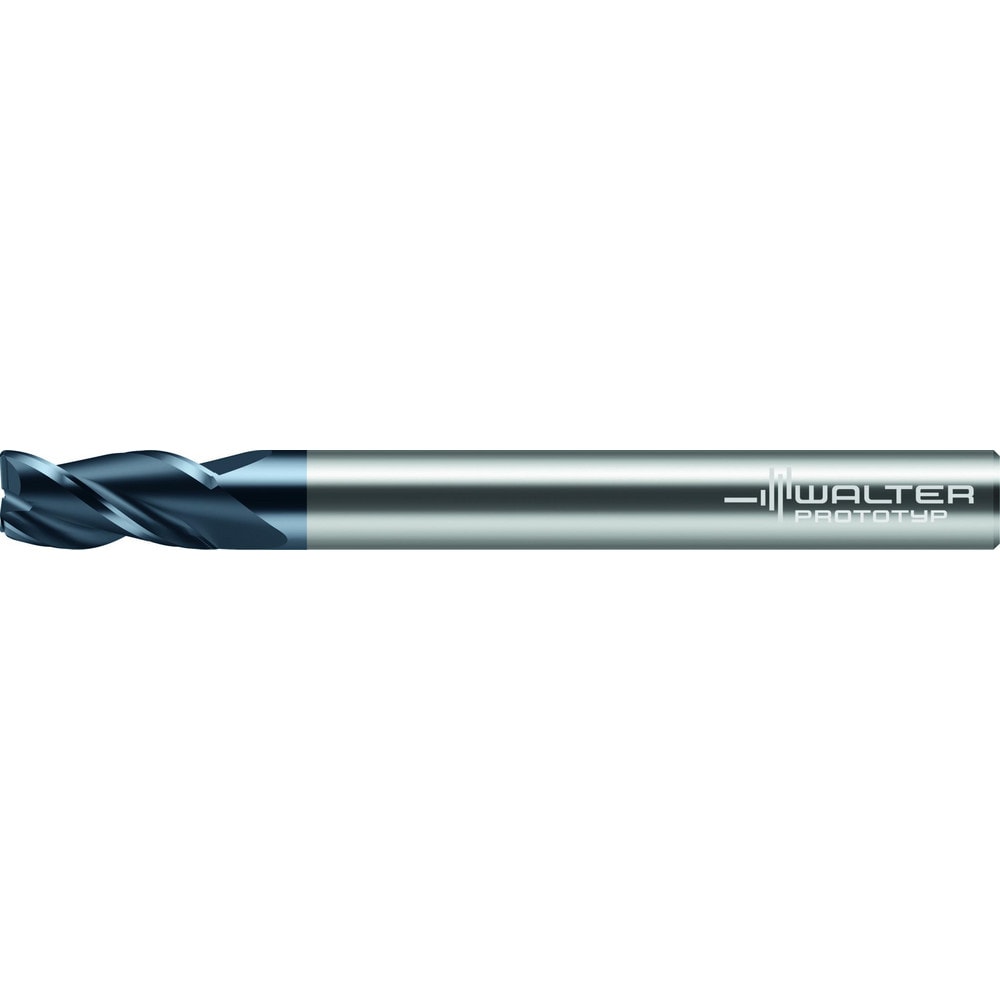

Corner Radius End Mill: 0.0930" Dia, 0.14" LOC, 0.0100" Radius, 3 Flute, Solid Carbide
Item #: 75272310
Brand: Walter-Prototyp
Model #: 8414911
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0930 |
| Number Of Flutes | 3 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | nACRo |
| Overall Length (Inch) | 1-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1400 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.8700 |
| Reach Length (Decimal Inch) | 0.8701 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Series | MA230.A-3-R |
| Proprietary Coating Designation | WJ30EN |
| Manufacturers Catalog Number | MA230.2.36A3S025-WJ30EN |
| Mill Diameter (Decimal Inch) | 0.0930 |
| Number Of Flutes | 3 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | nACRo |
| Overall Length (Inch) | 1-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1400 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.8700 |
| Reach Length (Decimal Inch) | 0.8701 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Series | MA230.A-3-R |
| Proprietary Coating Designation | WJ30EN |
| Manufacturers Catalog Number | MA230.2.36A3S025-WJ30EN |
| MSC Part # | 75272310 |
| Mfr Part # | 8414911 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
