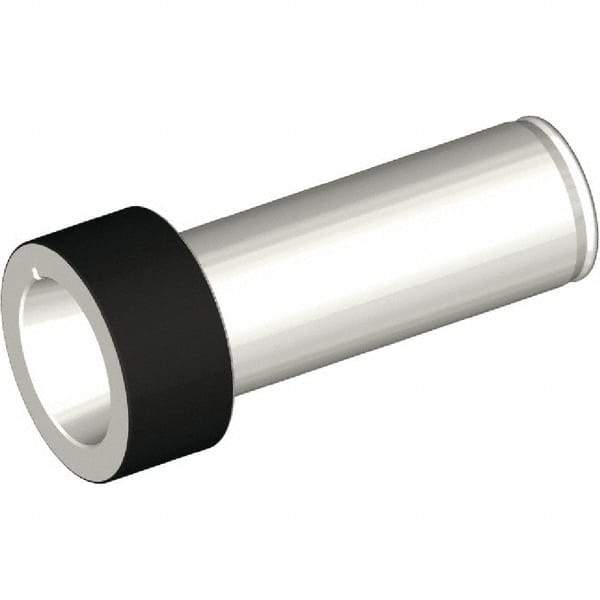

Kennametal - KR50 Inside Modular Connection, Boring Head Straight Shank - Modular Connection Mount, 4.5276 Inch Overall Length, 1.2795 Inch Projection, 2.3622 Inch Nose Diameter
Item #: 61460283
Brand: Kennametal
Model #: 3562942
Exact Tooling IR#: 04
Features and Benefits
Straight shank arbors can be held in end mill adapters or collet adapters.
| Product Specifications | |
|---|---|
| Shank Type | Straight Shank |
| Mount Type | Modular Connection |
| Inside Modular Connection Size | KR50 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Projection (Decimal Inch) | 1.2795 |
| Projection (mm) | 32.50 |
| Nose Diameter (mm) | 60.00 |
| Nose Diameter (Decimal Inch) | 2.3622 |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5276 |
| Through Coolant | Yes |
