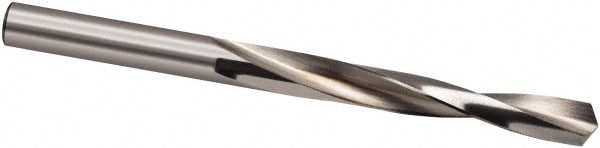

Jobber Drill: #46, 118 deg Point, High Speed Steel
Item #: 69316826
Brand: Guhring
Model #: 9002060020600
Product Specifications
| Drill Bit Size (Wire) | #46 |
| Drill Bit Size (Decimal Inch) | 0.0810 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Slow Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5313 |
| Overall Length (mm) | 49.00 |
| Overall Length (Decimal Inch) | 1.9291 |
| Spiral Type | Slow |
| Flute Length (mm) | 24.00 |
| Flute Length (Decimal Inch) | 0.9449 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 2.06 |
| Maximum Drilling Depth (Decimal Inch) | 1.6250 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Wire) | #46 |
| Drill Bit Size (Decimal Inch) | 0.0810 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Slow Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5313 |
| Overall Length (mm) | 49.00 |
| Overall Length (Decimal Inch) | 1.9291 |
| Spiral Type | Slow |
| Flute Length (mm) | 24.00 |
| Flute Length (Decimal Inch) | 0.9449 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 2.06 |
| Maximum Drilling Depth (Decimal Inch) | 1.6250 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 69316826 |
| Mfr Part # | 9002060020600 |
| Country of Origin Country of Origin is subject to change | Germany |
