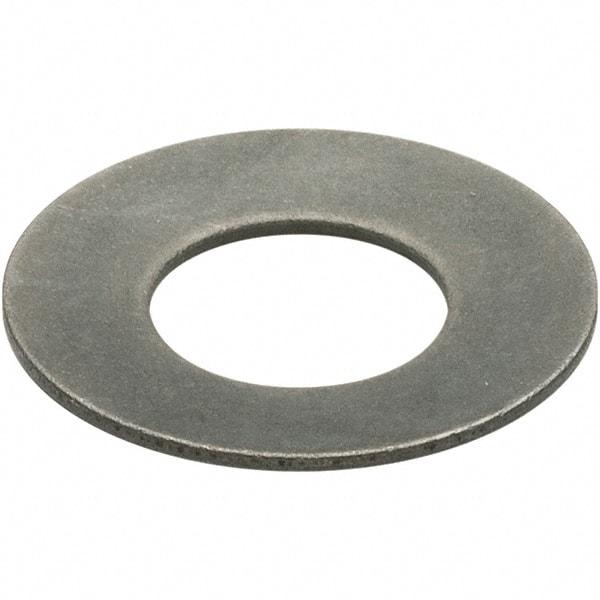

Associated Spring Raymond - 3.6221" ID, Grade 1075 High Carbon Steel, Oil Finish, Belleville Disc Spring - 7-7/8" OD, 0.7126" High, 0.5197" Thick
Item #: 61416400
Brand: Associated Spring Raymond
Model #: BD20013200920
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 3.6221 |
| Inside Diameter (mm) | 92.00 |
| Material | High Carbon Steel |
| Material Grade | 1075 |
| Outside Diameter (Decimal Inch) | 7.8740 |
| Outside Diameter (mm) | 200.00 |
| Thickness (mm) | 13.20 |
| Thickness (Decimal Inch) | 0.5197 |
| Overall Height (mm) | 18.10 |
| Overall Height (Decimal Inch) | 0.7126 |
| Deflection (Decimal Inch) | 0.1213 |
| Deflection (mm) | 3.08 |
| Load at Deflection (Lb.) | 60042.20 |
| Load at Deflection (N) | 267081.00 |
| Finish/Coating | Oil |
| Fastener Standard | DIN 2093 |
