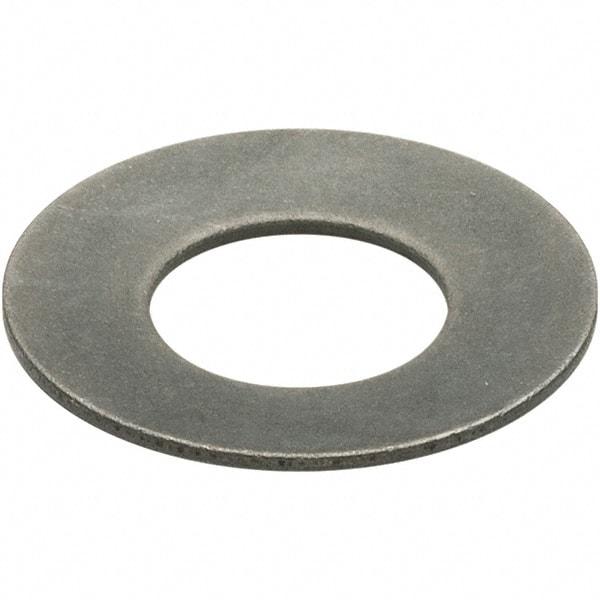

Associated Spring Raymond - 0.7205" ID, Grade 1075 High Carbon Steel, Oil Finish, Belleville Disc Spring - 1.9685" OD, 0.1378" High, 0.0787" Thick
Item #: 61412870
Brand: Associated Spring Raymond
Model #: BD0502000183
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.7205 |
| Inside Diameter (mm) | 18.30 |
| Material | High Carbon Steel |
| Material Grade | 1075 |
| Outside Diameter (Decimal Inch) | 1.9685 |
| Outside Diameter (mm) | 50.00 |
| Thickness (mm) | 2.00 |
| Thickness (Decimal Inch) | 0.0787 |
| Overall Height (mm) | 3.50 |
| Overall Height (Decimal Inch) | 0.1378 |
| Deflection (Decimal Inch) | 0.0441 |
| Deflection (mm) | 1.12 |
| Load at Deflection (Lb.) | 1026.03 |
| Load at Deflection (N) | 4564.00 |
| Finish/Coating | Oil |
| Fastener Standard | DIN 2093 |
