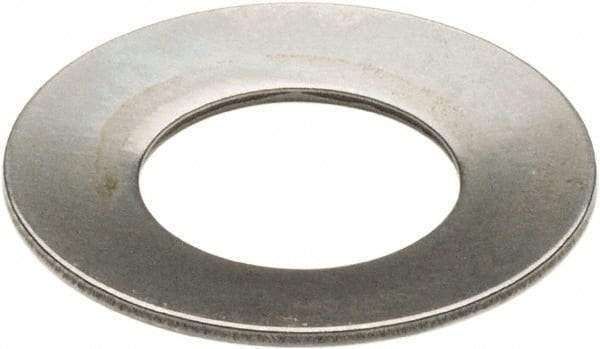

Associated Spring Raymond - 1-1/4" Bolt, Grade 1074 Steel, Oil Finish, Belleville Disc Spring - 1/4" High, 0.168" Thick
Item #: 61410999
Brand: Associated Spring Raymond
Model #: B3750168
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1-1/4 |
| Bolt Size (mm) | 31.75 |
| System of Measurement | Inch |
| Material | Steel |
| Material Grade | 1074 |
| Thickness (mm) | 4.27 |
| Thickness (Decimal Inch) | 0.1680 |
| Overall Height (mm) | 6.38 |
| Overall Height (Decimal Inch) | 0.2510 |
| Deflection (Decimal Inch) | 0.0420 |
| Deflection (mm) | 1.07 |
| Minimum Inside Diameter (Decimal Inch) | 1.2500 |
| Minimum Inside Diameter (mm) | 31-3/4 |
| Maximum Outside Diameter (Decimal Inch) | 3.7500 |
| Maximum Outside Diameter (mm) | 95.25 |
| Load at Flat (Lb.) | 4754.00 |
| Load at Flat (N) | 21146.80 |
| Minimum Load at Deflection (Lb.) | 2348.00 |
| Minimum Load at Deflection (N) | 10444.40 |
| Maximum Load at Deflection (Lb.) | 2870.00 |
| Maximum Load at Deflection (N) | 12766.40 |
| Finish/Coating | Oil |
| Bolt Size (Decimal Inch) | 1-1/4 |
