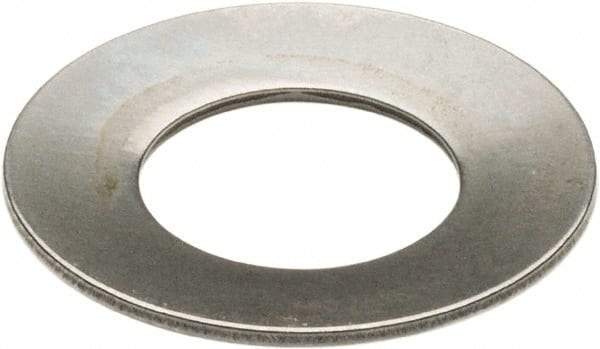

Associated Spring Raymond - 1/2" Bolt, Grade 17-7 PH Stainless Steel, Uncoated, Belleville Disc Spring - 0.128" High, 0.102" Thick
Item #: 61410270
Brand: Associated Spring Raymond
Model #: B1500102S
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1/2 |
| Bolt Size (mm) | 12.70 |
| System of Measurement | Inch |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Thickness (mm) | 2.59 |
| Thickness (Decimal Inch) | 0.1020 |
| Overall Height (mm) | 3.25 |
| Overall Height (Decimal Inch) | 0.1280 |
| Deflection (Decimal Inch) | 0.0130 |
| Deflection (mm) | 0.33 |
| Minimum Inside Diameter (Decimal Inch) | 0.5050 |
| Minimum Inside Diameter (mm) | 12.83 |
| Maximum Outside Diameter (Decimal Inch) | 1.5000 |
| Maximum Outside Diameter (mm) | 38.10 |
| Load at Flat (Lb.) | 2060.00 |
| Load at Flat (N) | 9163.34 |
| Minimum Load at Deflection (Lb.) | 897.00 |
| Minimum Load at Deflection (N) | 3990.05 |
| Maximum Load at Deflection (Lb.) | 1200.00 |
| Maximum Load at Deflection (N) | 5337.87 |
| Finish/Coating | Uncoated |
| Bolt Size (Decimal Inch) | 1/2 |
