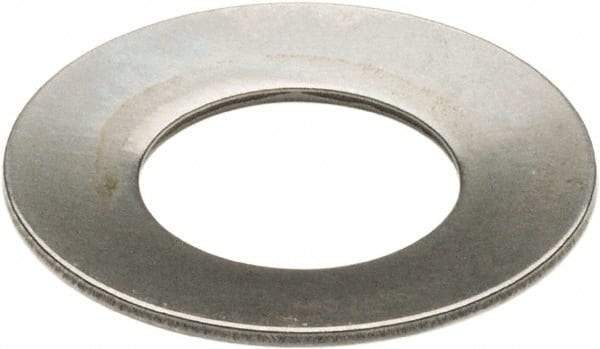

Associated Spring Raymond - 11/16" Bolt, Grade 302 Stainless Steel, Uncoated, Belleville Disc Spring - 0.101" High, 0.067" Thick
Item #: 61410114
Brand: Associated Spring Raymond
Model #: B1375067S1
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 11/16 |
| Bolt Size (mm) | 17.46 |
| System of Measurement | Inch |
| Material | Stainless Steel |
| Material Grade | 302 |
| Thickness (mm) | 1.70 |
| Thickness (Decimal Inch) | 0.0670 |
| Overall Height (mm) | 2.57 |
| Overall Height (Decimal Inch) | 0.1010 |
| Deflection (Decimal Inch) | 0.0270 |
| Deflection (mm) | 0.69 |
| Minimum Inside Diameter (Decimal Inch) | 0.6920 |
| Minimum Inside Diameter (mm) | 17.58 |
| Maximum Outside Diameter (Decimal Inch) | 1.3750 |
| Maximum Outside Diameter (mm) | 34.93 |
| Load at Flat (Lb.) | 1504.00 |
| Load at Flat (N) | 6690.13 |
| Minimum Load at Deflection (Lb.) | 737.00 |
| Minimum Load at Deflection (N) | 3278.34 |
| Maximum Load at Deflection (Lb.) | 976.00 |
| Maximum Load at Deflection (N) | 4341.46 |
| Finish/Coating | Uncoated |
| Bolt Size (Decimal Inch) | 11/16 |
