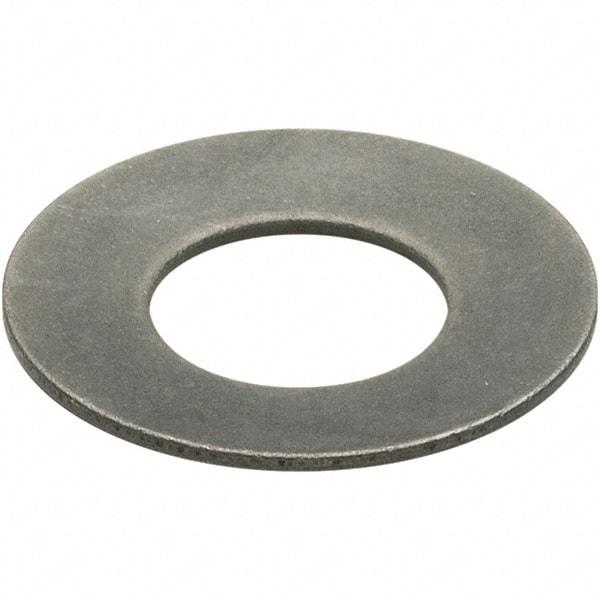

Associated Spring Raymond - 0.6417" ID, Grade 1075 High Carbon Steel, Oil Finish, Belleville Disc Spring - 1.2402" OD, 0.0965" High, 0.0689" Thick
Item #: 61403416
Brand: Associated Spring Raymond
Model #: BD032175
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.6417 |
| Inside Diameter (mm) | 16.30 |
| Material | High Carbon Steel |
| Material Grade | 1075 |
| Outside Diameter (Decimal Inch) | 1.2402 |
| Outside Diameter (mm) | 31.50 |
| Thickness (mm) | 1.75 |
| Thickness (Decimal Inch) | 0.0689 |
| Overall Height (mm) | 2.45 |
| Overall Height (Decimal Inch) | 0.0965 |
| Deflection (Decimal Inch) | 0.0209 |
| Deflection (mm) | 0.53 |
| Load at Deflection (Lb.) | 876.76 |
| Load at Deflection (N) | 3900.00 |
| Finish/Coating | Oil |
| Fastener Standard | DIN 2093 |
