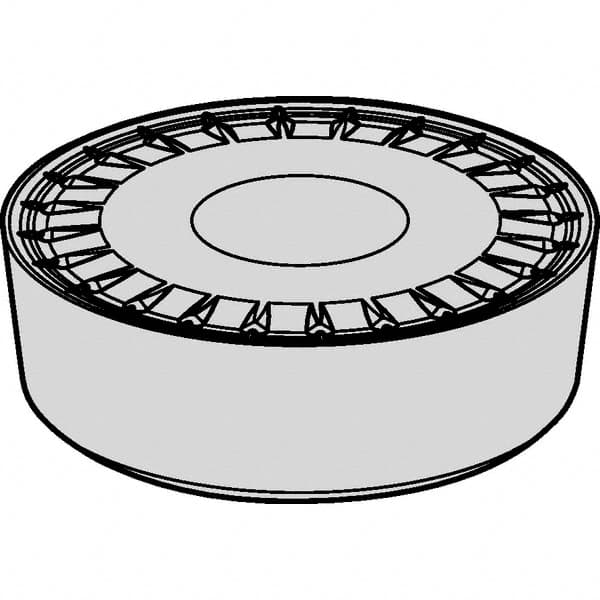

Kennametal - RCMX2507M0 UP Grade KCP10B Carbide Turning Insert - TiOCN Finish, Round, 63/64" Inscr Circle, 5/16" Thick
Item #: 61281440
Brand: Kennametal
Model #: 5696593
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 2507M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 25.00 |
| Inscribed Circle (Decimal Inch) | 0.9844 |
| Inscribed Circle (Inch) | 63/64 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Manufacturer's Grade | KCP10B |
| Coating | TiOCN |
| Chip Breaker | UP |
| Hole Diameter (mm) | 7.19 |
| Hole Diameter (Decimal Inch) | 0.2830 |
| ISO Number | RCMX2507M0TUP |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | RCMX2507M0TUP |
| Primary Workpiece Material | P |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Round |
