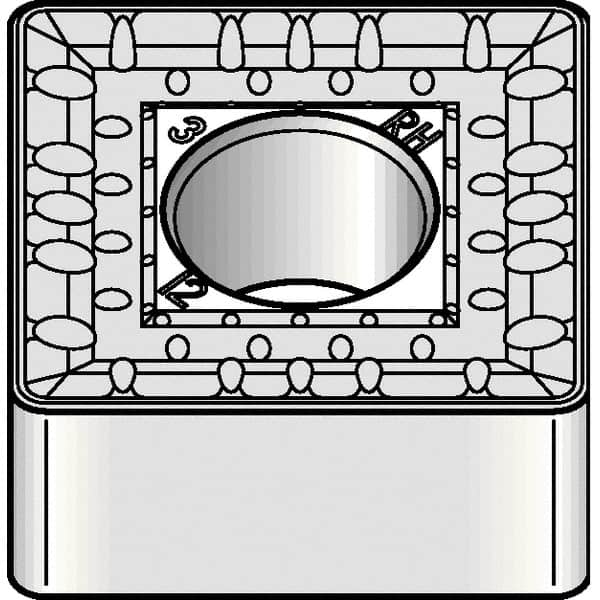

Kennametal - SNMM856 RH Grade KCP10B Carbide Turning Insert - TiOCN Finish, 90° Square, 1" Inscr Circle, 5/16" Thick, 3/32" Corner Radius
Item #: 61281051
Brand: Kennametal
Model #: 5694629
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMM |
| Insert Size | 856 |
| Material | Carbide |
| Length (mm) | 25.40 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | KCP10B |
| Coating | TiOCN |
| Chip Breaker | RH |
| Insert Length (Decimal Inch) | 1.0000 |
| Hole Diameter (mm) | 9.12 |
| Hole Diameter (Decimal Inch) | 0.3594 |
| ISO Number | SNMM250724RH |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
