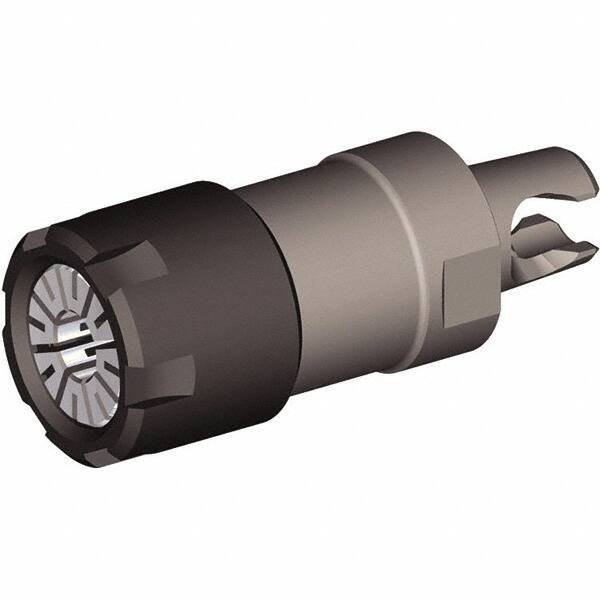

Kennametal - 0.02" to 13/32" Capacity, 40mm Projection, Modular Connection, ER16 Collet Chuck - 54.29mm OAL, 20mm Shank Diam
Item #: 61092490
Brand: Kennametal
Model #: 3741455
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Modular Connection Size | KM2016 |
| Projection (mm) | 40.00 |
| Projection (Decimal Inch) | 1.5750 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.4063 |
| Overall Length (mm) | 54.29 |
| Overall Length (Decimal Inch) | 2.1370 |
| Shank Length (mm) | 14.29 |
| Shank Length (Decimal Inch) | 0.5626 |
| Hex Diameter (mm) | 22.00 |
| Hex Diameter (Decimal Inch) | 0.8660 |
| PSC Code | 5136 |
| Collet Nut Diameter (Decimal Inch) | 0.8660 |
| Collet Nut Diameter (mm) | 22.00 |
