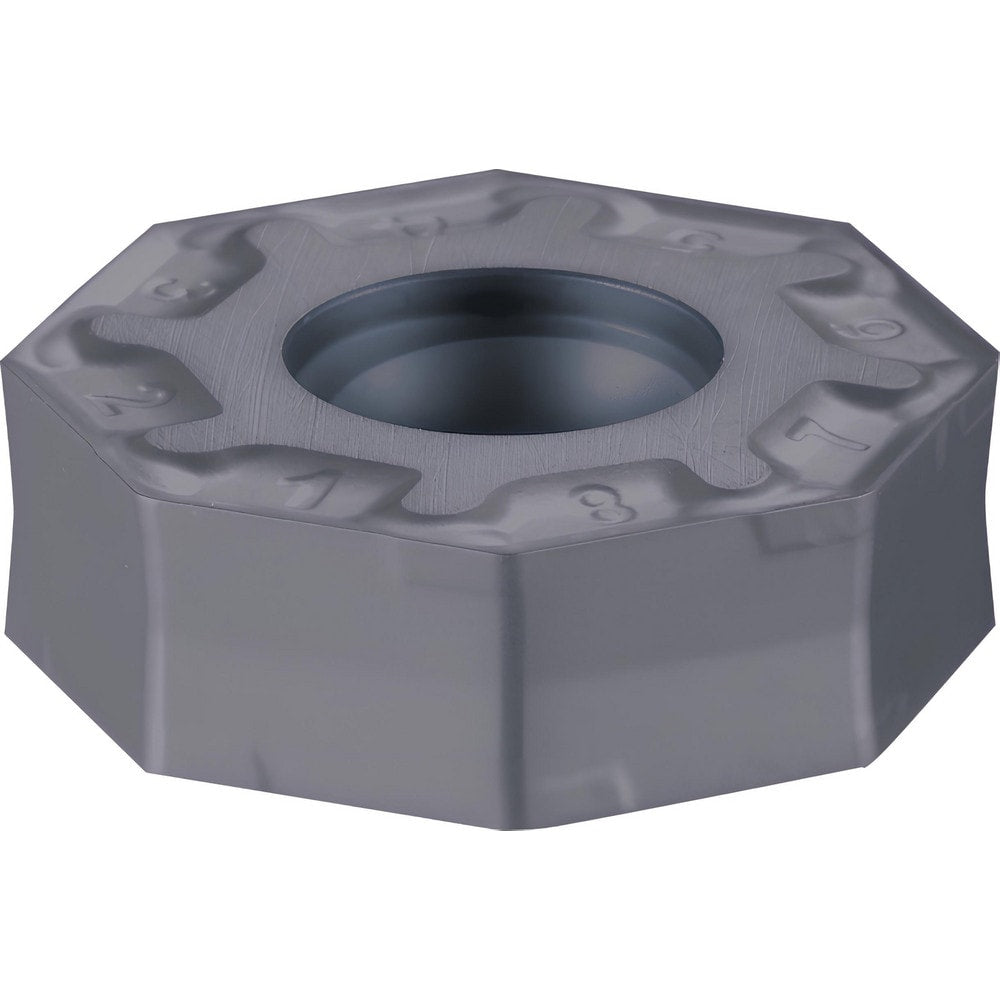

Milling Insert: XAHT060525SR-GM XC1015, Solid Carbide
Item #: 33626763
Brand: OSG
Model #: 7812064
Product Specifications
| Insert Style | XAHT |
| Insert Size | 06 |
| Insert Material | Solid Carbide |
| Insert Shape | Irregular |
| Manufacturer Grade | XC1015 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Corner Radius (mm) | 2.50 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2228 |
| Thickness (mm) | 5.70 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 3.00 |
| Insert Size Code | 060525 |
| Inscribed Circle (Inch) | 43/64 |
| Inscribed Circle (Decimal Inch) | 0.6719 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Series | 78PAO |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | XAHT060525SR-GM |
| Iso Code | XAHT060525SR-GM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | 7812064 |
| Cutter Series Compatibility | 78PAO |
| Chip Breaker | GM |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 45 |
| Width (Decimal Inch - 4 Decimals) | 0.6732 |
| Width (mm - 2 Decimals) | 5.70 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3937 |
