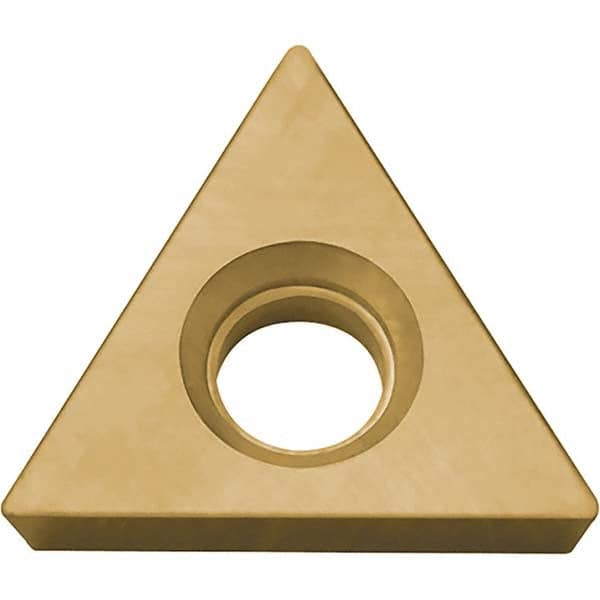

Kyocera - TPGB321 Grade PV720 Cermet Turning Insert
Item #: 11386646
Brand: Kyocera
Model #: 8862746
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGB |
| Insert Size | 321 |
| Material | Cermet |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | PV720 |
| Coating | TiCN (Megacoat Nano) |
| Hole Diameter (Decimal Inch) | 0.1772 |
| ISO Number | TPGB160304 |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | PVD |
| Manufacturers Catalog Number | TPGB321 PV720 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | TPGB |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Boring, Internal Facing, Copying, Back Boring |
| MultiUseTool | Yes |
| Shape | Triangle |
