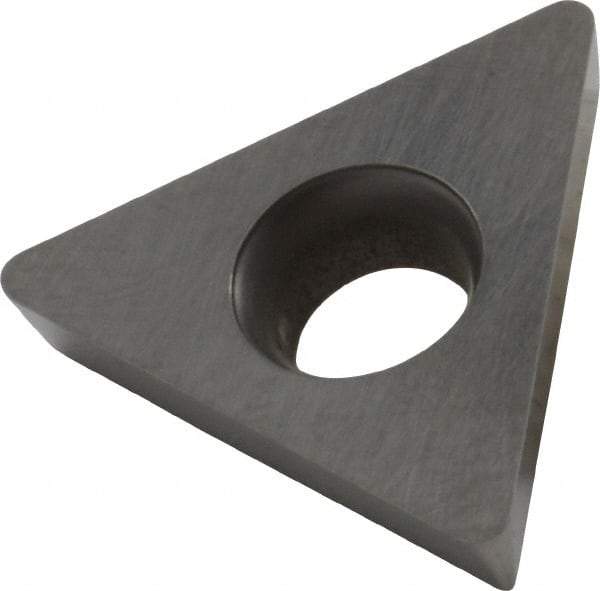

Iscar - TPGB322 60 Grade IC70 Carbide Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 60906179
Brand: Iscar
Model #: 5502128
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGB |
| Insert Size | 322 |
| Material | Carbide |
| Length (mm) | 16.51 |
| Length (Decimal Inch) | 0.6500 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | IC70 |
| Coating | Uncoated |
| Chip Breaker | 60 |
| Hole Diameter (mm) | 4.29 |
| Hole Diameter (Decimal Inch) | 0.1690 |
| ISO Number | TPGB 322-60 |
| Relief Angle | 11 |
| Manufacturers Catalog Number | TPGB 322-60 |
| Included Angle | 60 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Holding Method | Screw |
| Multi Use Application | Boring |
| MultiUseTool | Yes |
| Shape | Triangle |
