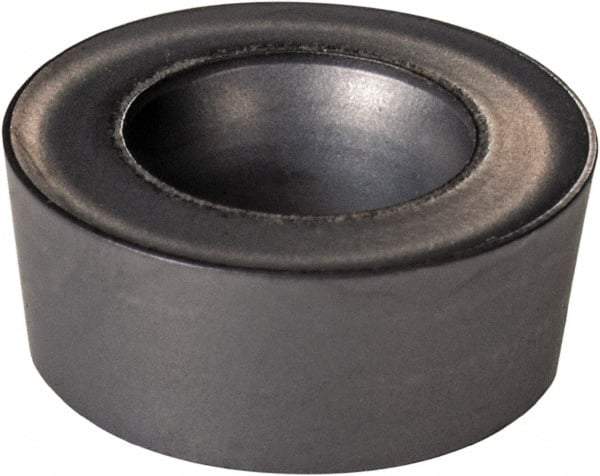

Iscar - RCMT10T3M0 14 Grade IC20 Carbide Turning Insert - Uncoated, Round, 10mm Inscr Circle, 5/32" Thick
Item #: 60888518
Brand: Iscar
Model #: 5500614
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 10T3M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1560 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Chip Breaker | 14 |
| Hole Diameter (mm) | 4.39 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | RCMT 10T3M0-14 |
| Relief Angle | 7 |
| Manufacturers Catalog Number | RCMT 10T3M0-14 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Insert Holding Method | Screw |
| Multi Use Application | Facing |
| MultiUseTool | Yes |
| Shape | Round |
