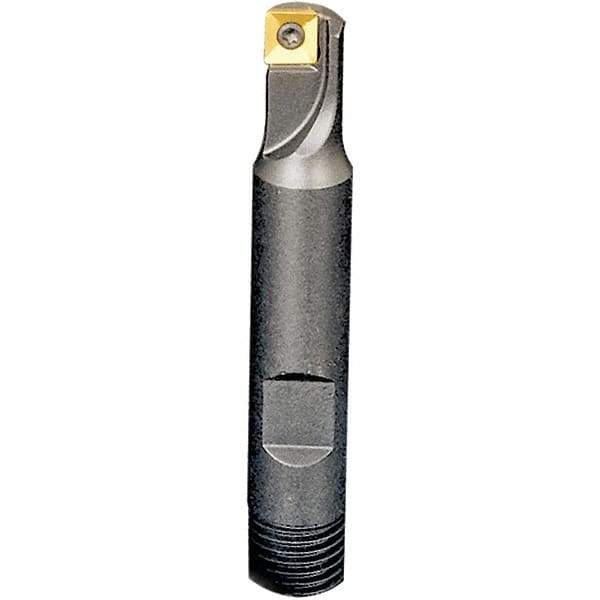

Iscar - 3/4" Cut Diam, 0.22" Max Depth of Cut, 3/4" Shank Diam, 3" OAL, Indexable Square Shoulder End Mill - QOMT 0602.., SOMT 0602.., XOMT 0602.. Inserts, Weldon Shank, 90° Lead Angle, Series Heliquad
Item #: 60842085
Brand: Iscar
Model #: 3110361
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.0000 |
| Lead Angle | 90 |
| Series | Heliquad |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.2200 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | E90X |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 0.8700 |
| Weldon Flat | Yes |
| Insert Compatibility | QOMT 0602.., SOMT 0602.., XOMT 0602.. |
