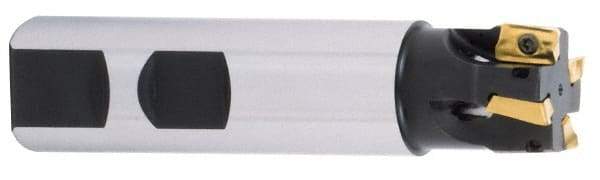

Iscar - 0.7" Cut Diam, 0.394" Max Depth of Cut, 3/4" Shank Diam, 3.38" OAL, Indexable Square Shoulder End Mill - AP..1003.., HM90 AP..1003.. Inserts, Weldon Shank, 90° Lead Angle, Series Heli2000
Item #: 60840980
Brand: Iscar
Model #: 3101947
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7000 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.3800 |
| Lead Angle | 90 |
| Series | Heli2000 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HM90 E90A-10 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.0000 |
| Weldon Flat | Yes |
| Insert Compatibility | AP..1003..; HM90 AP..1003.. |
