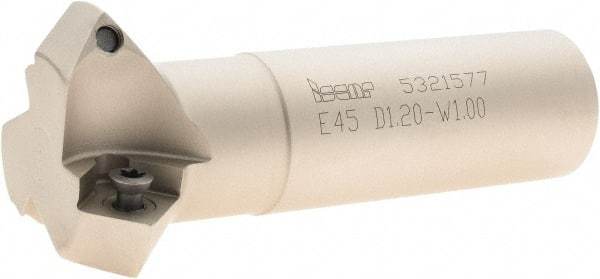

Iscar - 45° Lead Angle, 1.815" Max Cut Diam, 1.2" Min Cut Diam, 0.31" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, SCMT-19, SCMW, SDMT-AD-N, TPMT Insert Style, 3-3/4" Overall Length, Straight Shank
Item #: 60840220
Brand: Iscar
Model #: 3110005
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.2000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.8150 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Length (Decimal Inch) | 3.7500 |
| Insert Style | SCMT-19; SCMW; SDMT-AD-N; TPMT |
| Series | IscarMill |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3100 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | E45 |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.3800 |
| Weldon Flat | Yes |
| Shank Length (Decimal Inch) | 2.3700 |
| Complete Insert Compatibility | SCMT 3-2-19; SCMT 432-19; SCMW 3-1; SCMW 432; SDMT 32AD-N; TPMT 2-0; TPMT 2-1; TPMT 2-2; TPMT 321; TPMT 322 |
