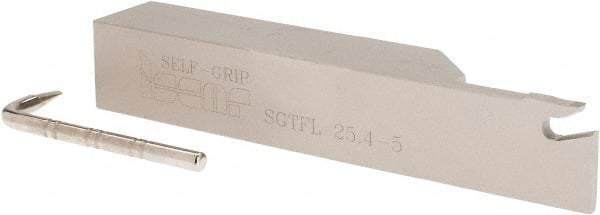

Iscar - SGTF, Left Hand Cut, 3" Max Workpc Diam, GFN, GFR Insert, Indexable Cutoff Toolholder - 1" Shank Width, 1" Shank Height, 5.9" OAL
Item #: 60824984
Brand: Iscar
Model #: 2300817
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Workpiece Diameter (Inch) | 3 |
| Maximum Workpiece Diameter (Decimal Inch) | 3.0000 |
| Series | Self Grip |
| Toolholder Style | SGTF |
| Insert Compatibility | GFN-A; GFN-C; GFN-J; GFN-M; GFN-U; GFN-W; GFR/L-C; GFR/L-J; GFR/L-W; GFR-U |
| Overall Length (Decimal Inch) | 5.9000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Insert Holding Method | Self Grip |
| Through Coolant | No |
| Minimum Insert Width (Decimal Inch) | 0.1780 |
| Insert Width (Decimal Inch) | 0.1890; 0.2010 |
| Maximum Insert Width (Decimal Inch) | 0.2170 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Blade Width (Decimal Inch) | 0.1570 |
