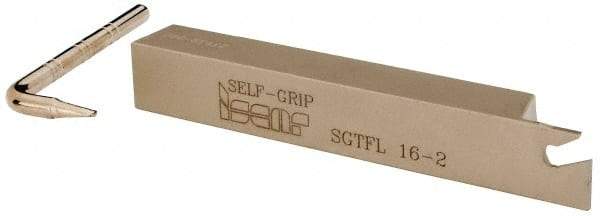

Iscar - SGTF, Left Hand Cut, 1-1/4" Max Workpc Diam, GFN, GFR Insert, Indexable Cutoff Toolholder - 5/8" Shank Width, 5/8" Shank Height, 4-1/2" OAL
Item #: 60824703
Brand: Iscar
Model #: 2300793
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2500 |
| Series | Self Grip |
| Toolholder Style | SGTF |
| Insert Compatibility | GFN-A; GFN-C; GFN-J; GFN-M; GFN-U; GFN-W; GFR/L-C; GFR/L-J; GFR/L-W; GFR-U |
| Overall Length (Decimal Inch) | 4.5000 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Height (Decimal Inch) | 0.6250 |
| Insert Holding Method | Self Grip |
| Through Coolant | No |
| Minimum Insert Width (Decimal Inch) | 0.0710 |
| Insert Width (Decimal Inch) | 0.0870; 0.0940 |
| Maximum Insert Width (Decimal Inch) | 0.1060 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6250 |
| Blade Width (Decimal Inch) | 0.0630 |
