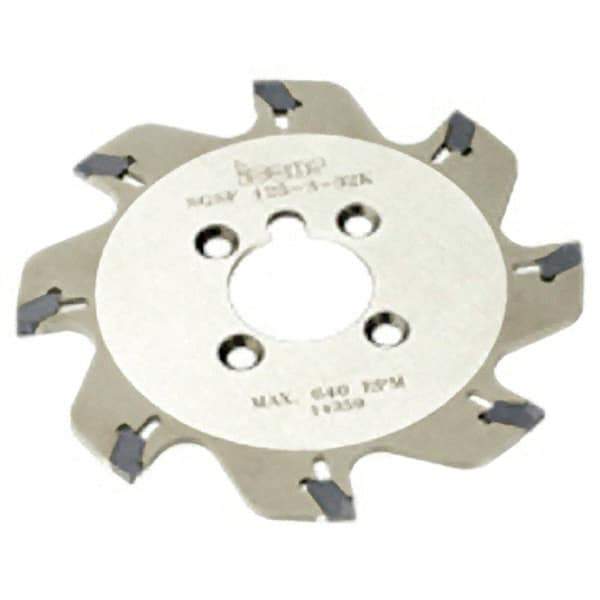

Iscar - Arbor Hole Connection, 3/32" Cutting Width, 2.05" Depth of Cut, 6.3" Cutter Diam, 1-1/4" Hole Diam, 10 Tooth Indexable Slotting Cutter - SGSF Toolholder, GSFN, GSFU Insert
Item #: 60823267
Brand: Iscar
Model #: 2300689
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (Decimal Inch) | 2.0500 |
| Cutter Diameter (Decimal Inch) | 6.3000 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 10 |
| Toolholder Style | SGSF |
| Series | Self-Grip(SGSA) |
| Insert Style | GSFN; GSFU |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 500 |
| Minimum Cutting Width (Decimal Inch) | 0.1060 |
| Maximum Cutting Width (Decimal Inch) | 0.1390 |
| Hub Diameter (Decimal Inch) | 3.1500 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 0.0940 |
