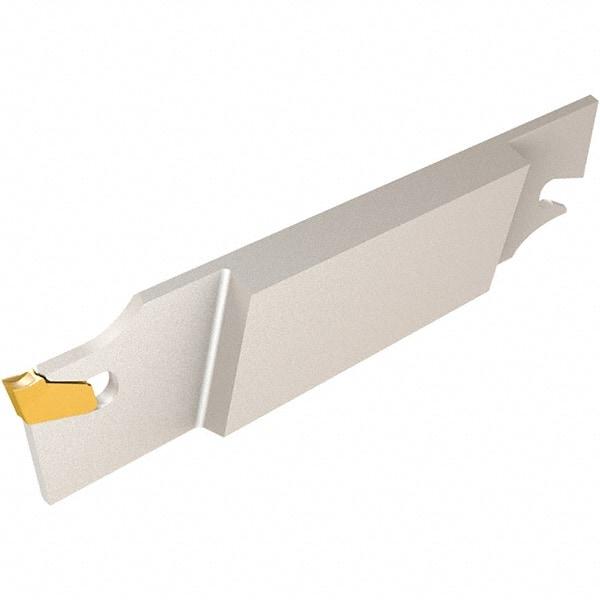

Iscar - 1.2598" Blade Height, 0.315" Blade Width, 4.3307" OAL, Left Hand Cut, Double End Indexable Cut-Off Blade - SGFH Blade, Self Grip Series
Item #: 60821626
Brand: Iscar
Model #: 2300550
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Left Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 8.00 |
| Blade Width (Decimal Inch) | 0.3150 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Style | SGFH |
| Insert Width (mm) | 2.70 |
| Insert Width (Decimal Inch) | 0.1063 |
| Series | Self Grip |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 2.3600 |
| Cutting Height (mm) | 24.80 |
| Cutting Height (Decimal Inch) | 0.9764 |
| Minimum Insert Width (mm) | 2.70 |
| Minimum Insert Width (Decimal Inch) | 0.1063 |
| Maximum Insert Width (mm) | 3.53 |
| Maximum Insert Width (Decimal Inch) | 0.1390 |
| Manufacturers Catalog Number | SGFHL32 T 33-3 |
