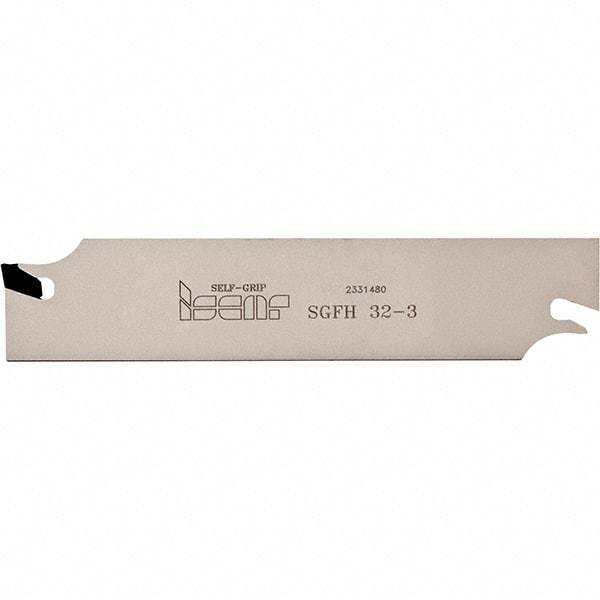

Iscar - 1.0236" Blade Height, 0.0945" Blade Width, 2.4803" OAL, Neutral Cut, Single End Indexable Cut-Off Blade - SGFH Blade, Self Grip Series
Item #: 60821006
Brand: Iscar
Model #: 2301077
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 2.40 |
| Blade Width (Decimal Inch) | 0.0945 |
| Blade Overall Length (mm) | 63.00 |
| Blade Overall Length (Decimal Inch) | 2.4803 |
| Blade Style | SGFH |
| Insert Width (mm) | 2.70 |
| Insert Width (Decimal Inch) | 0.1063 |
| Series | Self Grip |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 3.5400 |
| Cutting Height (mm) | 21.40 |
| Cutting Height (Decimal Inch) | 0.8425 |
| Minimum Insert Width (mm) | 2.70 |
| Minimum Insert Width (Decimal Inch) | 0.1063 |
| Maximum Insert Width (mm) | 3.54 |
| Maximum Insert Width (Decimal Inch) | 0.1394 |
| Manufacturers Catalog Number | SGFH 26-3M |
