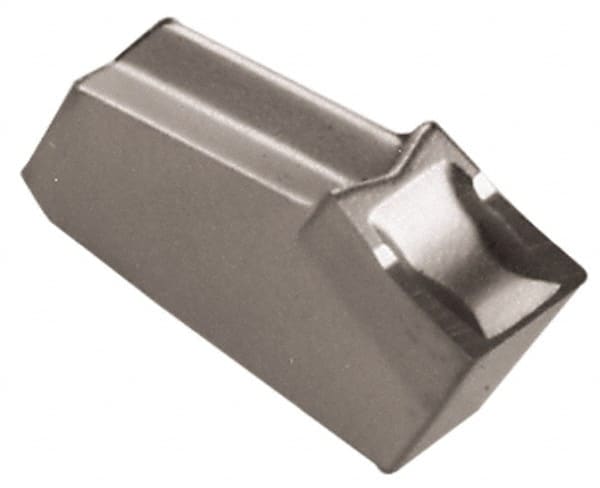

Iscar - GFN A IC20 Grade, 0.2012" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.011" Cnr Rad, Single End
Item #: 60798915
Brand: Iscar
Model #: 6061018
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GFN |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 5.11 |
| Cutting Width (Decimal Inch) | 0.2012 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Series | Self-Grip |
| Relief Angle | 7 |
| Chipbreaker | A |
| Multi-Use Application | Cut-Off; Grooving |
| Corner Radius (Decimal Inch) | 0.0110 |
| Corner Radius (mm) | 0.28 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 5 |
| Manufacturers Catalog Number | GFN 5A |
