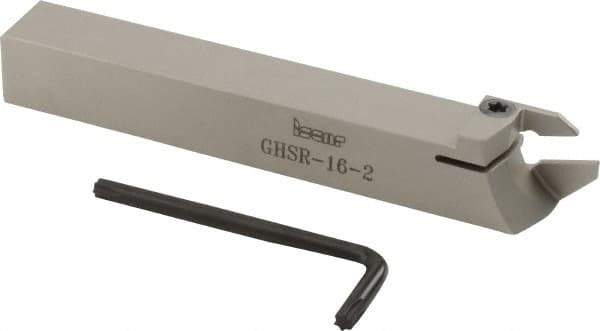

Iscar - GHS, Right Hand Cut, 1.26" Max Workpc Diam, GIG, GIM, GIP, TIP Insert, Indexable Cutoff Toolholder - 1.26 Max Depth of Cut, 16mm Shank Width, 16mm Shank Height, 120mm OAL
Item #: 60788288
Brand: Iscar
Model #: 2800499
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2600 |
| Series | Cut Grip |
| Toolholder Style | GHS |
| Insert Compatibility | GIG; GIM; GIP; TIP |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7200 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Insert Seat Size | 2 |
| Insert Holding Method | Clamp |
| Through Coolant | No |
| Minimum Insert Width (mm) | 2.20 |
| Minimum Insert Width (Decimal Inch) | 0.0870 |
| Maximum Insert Width (mm) | 3.15 |
| Maximum Insert Width (Decimal Inch) | 0.1240 |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 26.00 |
| Head Length (Decimal Inch) | 1.0236 |
| Shank Length (Inch) | 3-3/4 |
| Shank Length (Decimal Inch) | 3.7500 |
