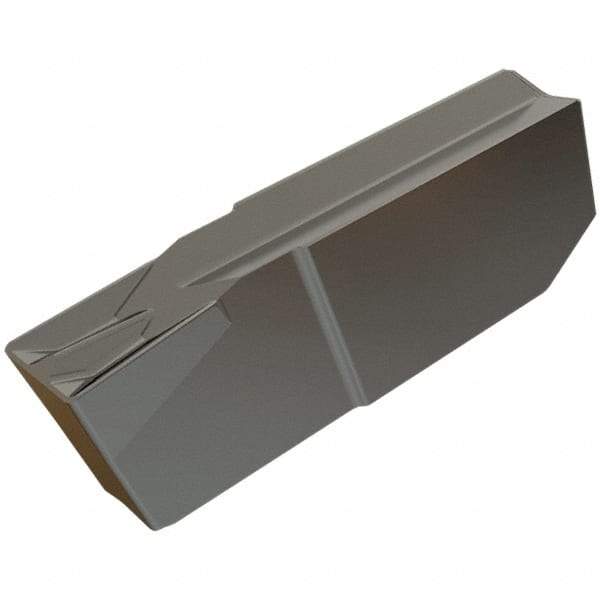

Iscar - 32GIM Grade IC54, 3.2mm Cutting Width Carbide Grooving Insert - Neutral, 0.22mm Corner Radius, Uncoated
Item #: 60762556
Brand: Iscar
Model #: 6400378
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIM |
| Insert Size | 32 |
| Material | Carbide |
| Cutting Width (mm) | 3.20 |
| Cutting Width (Decimal Inch) | 0.1260 |
| Manufacturer's Grade | IC54 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Milling; Parting |
| Corner Radius (mm) | 0.22 |
| Corner Radius (Decimal Inch) | 0.0087 |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| Overall Width (mm) | 3.20 |
| Overall Width (Decimal Inch) | 0.1260 |
