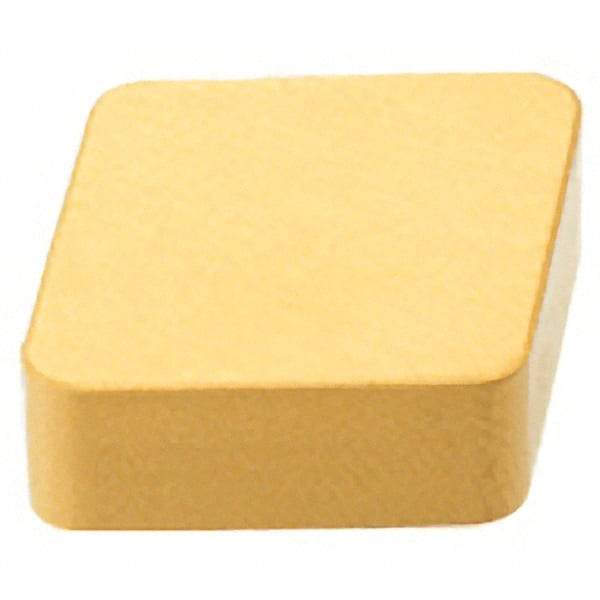

Iscar - CNG434 Grade IS8 Ceramic Turning Insert - 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/16" Corner Radius
Item #: 60752151
Brand: Iscar
Model #: 5700021
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | CNG |
| Insert Size | 434 |
| Material | Ceramic |
| Length (mm) | 12.90 |
| Length (Decimal Inch) | 0.5079 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | IS8 |
| Relief Angle | 0 |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Insert Holding Method | Clamp |
| Shape | Diamond |
