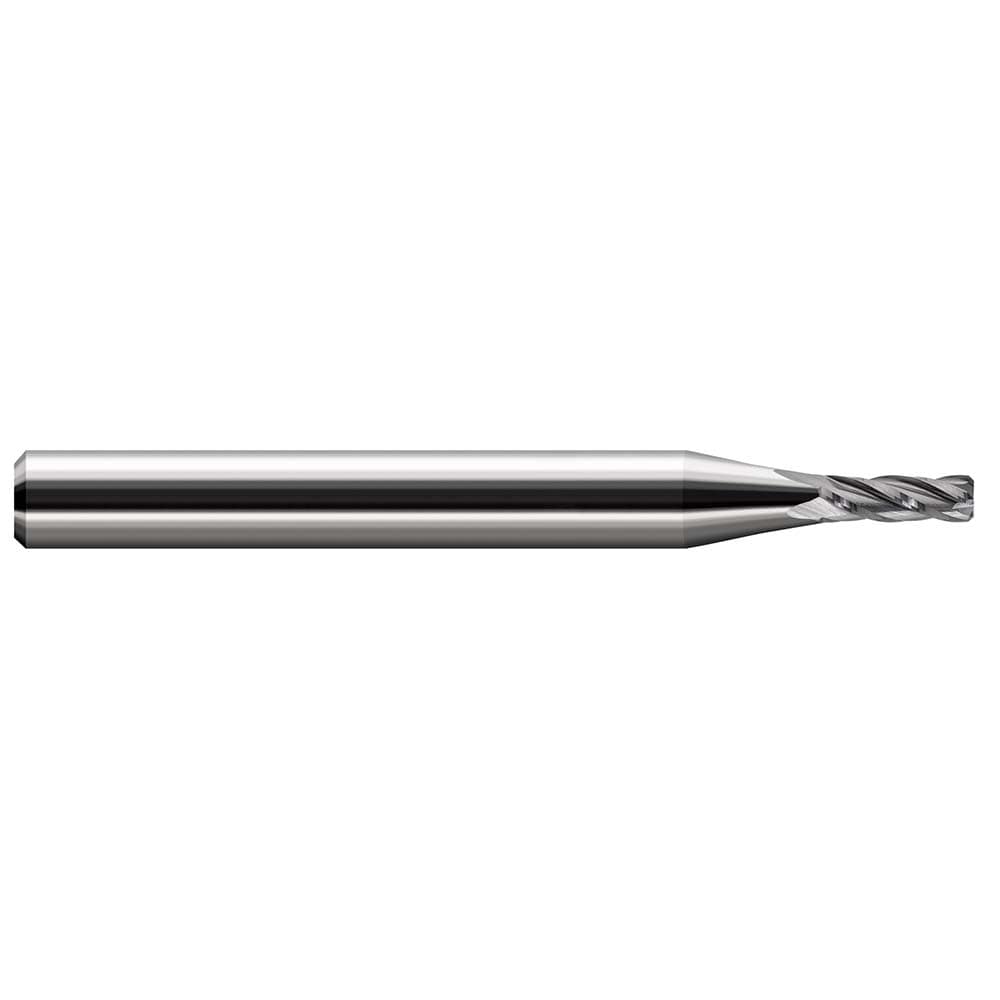

Corner Chamfer End Mill: 1/16" Dia, 3/16" LOC, 4 Flute, 0.0100" Chamfer Width, Solid Carbide
Item #: 04999207
Brand: Harvey Tool
Model #: 804962
Product Specifications
| Mill Diameter (Inch) | 1/16 |
| Mill Diameter (Decimal Inch) | 0.0620 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/16 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 1-1/2 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Chamfer Width (Decimal Inch) | 0.0100 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 1.5000 |
| Chipbreaker | No |
| Chamfer Angle | 45 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1870 |
| Length Type | Short |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| UNSPSC Code | 27112803 |
| Series | Miniature End Mills - Corner Chamfer - Stub & Standard |
