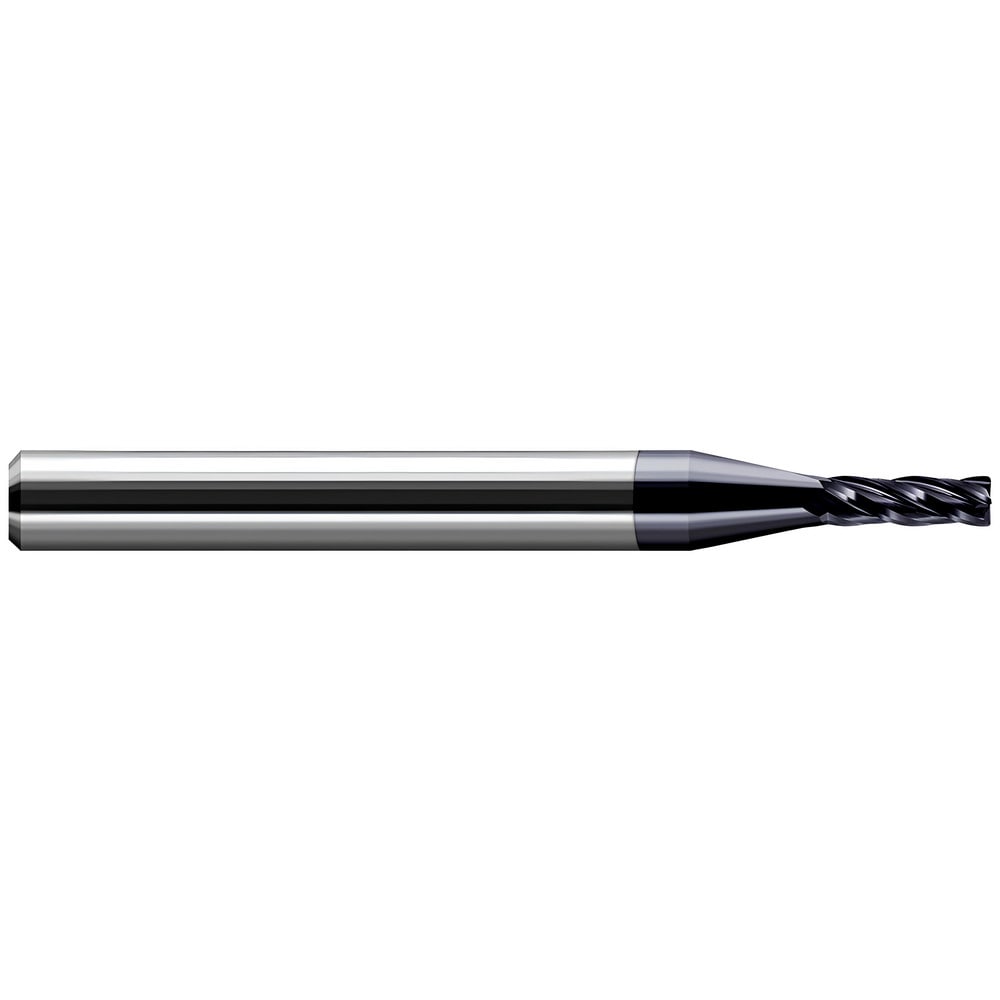

Corner Radius End Mill: 0.0250" Dia, 1.90 mm LOC, 0.0050" Radius, 4 Flute, Solid Carbide
Item #: 41975061
Brand: Harvey Tool
Model #: 26325-C4
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0250 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 1.90 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Diamond |
| Overall Length (Inch) | 1-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0050 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 1.5 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0750 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Corner Radius Tolerance | 0.0010 to -0.0010 in |
| Mill Diameter Tolerance | 0.0005/-0.0005 in |
| Overall Length Tolerance | 0.0100/-0.0000 in |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Non-ISO; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; K; M; N; O |
| Series | Miniature End Mills - Corner Radius - Stub & Standard; Miniature End Mills |
| Material Application | Wood; Composite; Aluminum; Stainless Steel; Cast Iron; Steel |
| Coating Classification | PVD |
| For Use With. | Toolholders |
