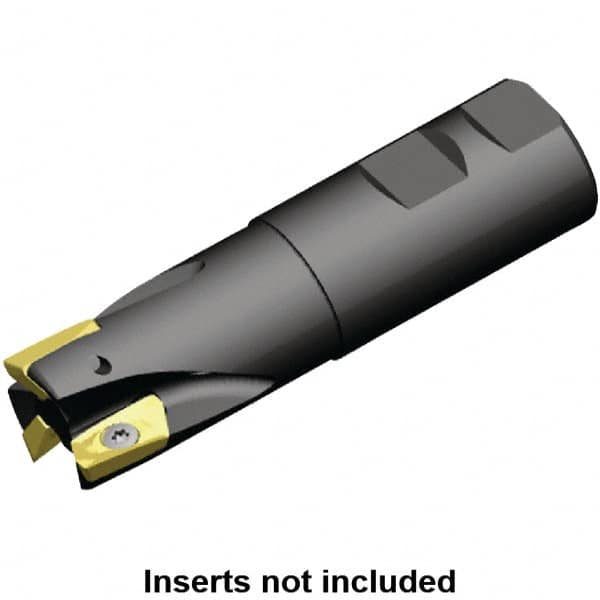

Kennametal - 20mm Cut Diam, 14.7mm Max Depth of Cut, 20mm Shank Diam, 90mm OAL, Indexable Square Shoulder Helical End Mill - ED.T 1404.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series Mill 1-14
Item #: 60297132
Brand: Kennametal
Model #: 2622232
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length/Projection (mm) | 90.00 |
| Overall Length/Projection (Decimal Inch) | 3.5433 |
| Lead Angle | 0 |
| Series | Mill 1-14 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 14.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5787 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Head Length (mm) | 39.00 |
| Head Length (Decimal Inch) | 1.5354 |
| Weldon Flat | Yes |
| Insert Compatibility | ED.T 1404.. |
| Shank Length (Decimal Inch) | 2.0079 |
| Shank Length (mm) | 51.00 |
| Maximum RPM | 47500 |
| Coolant Hole Diameter (mm) | 6.35 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
