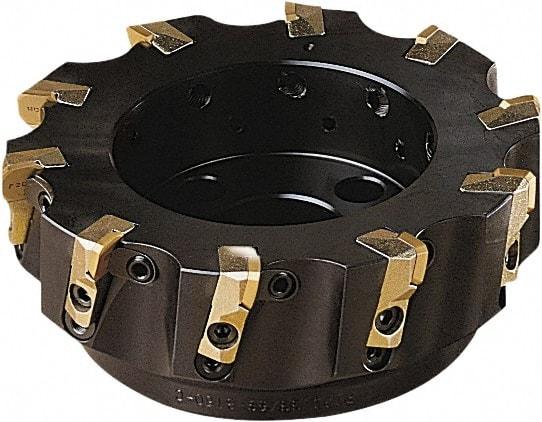

Seco - 80mm Cut Diam, 56mm Arbor Hole, 1mm Max Depth of Cut, 88° Indexable Chamfer & Angle Face Mill - 6 Inserts, SEEX 1203AFTN Insert, Right Hand Cut, 6 Flutes, Series R220.30
Item #: 60274271
Brand: Seco
Model #: 68850
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 56.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.2047 |
| Lead Angle | 88 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SEEX 1203AFTN |
| Series | R220.30 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | R220.30 |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 2.2047 |
| Hub Diameter (mm) | 56.00 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Maximum RPM | 4800 |
| Cutting Direction | Right Hand |
| Pitch | Close |
| Complete Insert Compatibility | SEEX 1203AFTN-M13; SEEX 1203AFTN-MD14 |
