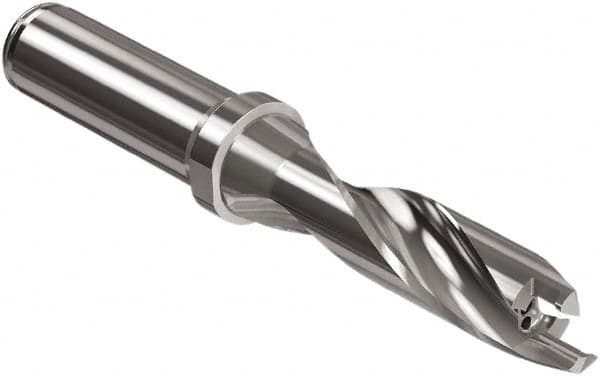

Seco - 15 to 15.99mm Diam, 3xD, 48mm Max Depth, 16mm Shank Diam, 58.2mm Flute, 121.2mm OAL, Replaceable Tip Drill - SD403 Toolholder, Series Crownloc Plus
Item #: 60183654
Brand: Seco
Model #: 41448
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6295 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.8898 |
| Maximum Drill Depth (mm) | 48.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Toolholder Style | SD403 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (mm) | 58.20 |
| Flute Length (Decimal Inch) | 2.2913 |
| Body Length (mm) | 73.20 |
| Body Length (Decimal Inch) | 2.8819 |
| Toolholder Coating | TiAlN |
| Overall Length (mm) | 121.20 |
| Overall Length (Decimal Inch) | 4.7717 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
