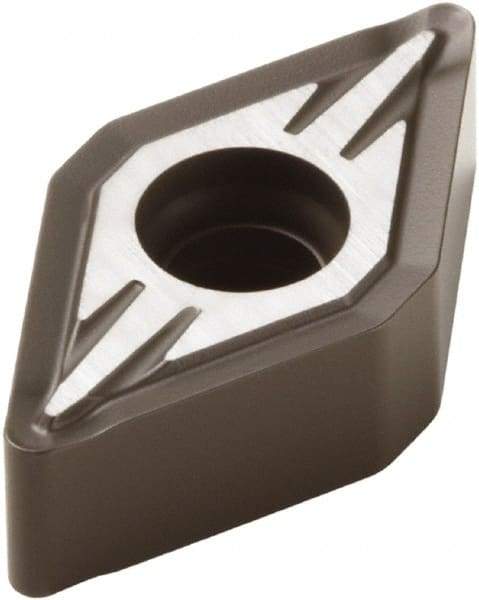

Seco - DNMU331 FF2 Grade TP1500 Carbide Turning Insert - Diamond, 3/8" Inscr Circle, 0.188" Thick, 1/64" Corner Radius
Item #: 60177276
Brand: Seco
Model #: 75032
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMU |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | TP1500 |
| Chip Breaker | FF2 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | DNMU 331-FF2 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Shape | Diamond |
