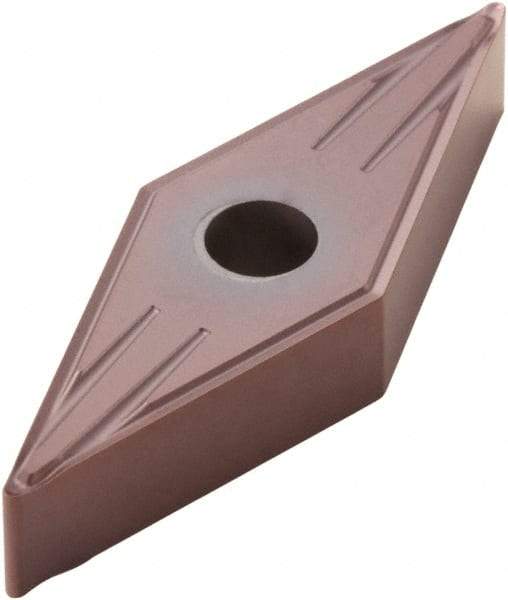

Seco - VNMG330.5 FF2 Grade TP1030 Cermet Turning Insert - 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 0.008" Corner Radius
Item #: 60170503
Brand: Seco
Model #: 75020
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 330.5 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | TP1030 |
| Chip Breaker | FF2 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | VNMG 330.5-FF2 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 35 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
