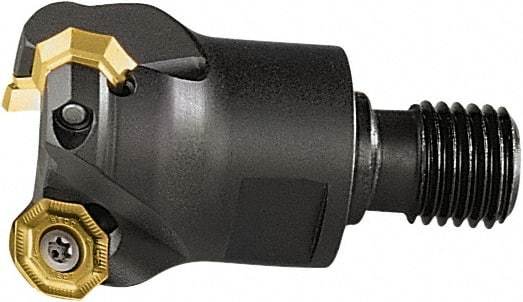

Seco - 43° Lead Angle, 40mm Max Cut Diam, 32mm Min Cut Diam, 3.5mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, OF.. 05.. Insert Style, 40mm Overall Length, Through Coolant, Modular Connection
Item #: 60142106
Brand: Seco
Model #: 05768
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.2598 |
| Minimum Cutting Diameter (mm) | 32.00 |
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Modular Connection |
| Lead Angle | 43 |
| Overall Length (mm) | 40.00 |
| Overall Length (Decimal Inch) | 1.5748 |
| Insert Style | OF.. 05.. |
| Series | OctoMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Maximum Depth of Cut (mm) | 3.50 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | R217.43 |
| Weldon Flat | No |
| Axial Rake Angle | 15 |
| Radial Rake Angle | 5 |
| Modular Connection Size | M16 |
| Maximum RPM | 14800 |
