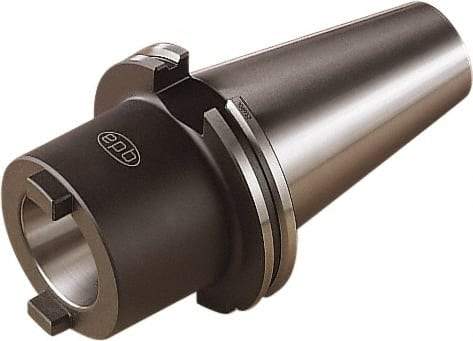

Seco - DIN69871-50 Outside Taper, BT40/CAT40/DIN69871-40 Inside Taper, DIN69871 to BT/CAT/DIN69871 Taper Adapter - 70mm Projection, 70mm Nose Diam, 179.7mm OAL
Item #: 60141587
Brand: Seco
Model #: 11414
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | DIN69871 to BT/CAT/DIN69871 |
| Outside Taper Size | DIN69871-50 |
| Inside Taper Size | BT40/CAT40/DIN69871-40 |
| Projection (Decimal Inch) | 2.7559 |
| Projection (mm) | 70.00 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 2.7559 |
| Nose Diameter (mm) | 70.00 |
| Overall Length (mm) | 179.70 |
| Overall Length (Decimal Inch) | 7.0748 |
| Drawbar Thread Size | M16 |
