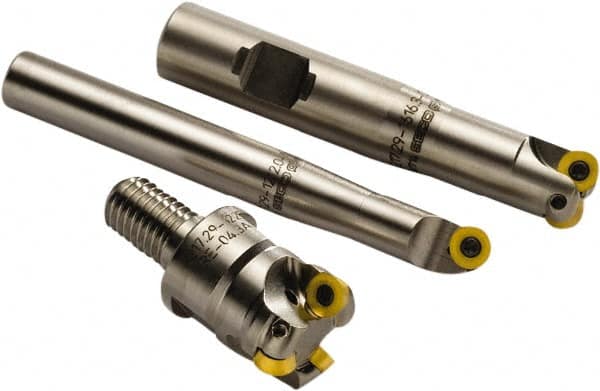

Seco - 25mm Cutting Diam, 4mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 3 Inserts, RD.. 0803 Insert, R217.29 Toolholder, Through Coolant
Item #: 60139367
Brand: Seco
Model #: 00123
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M12 |
| Number of Cutter Inserts | 3 |
| Insert Style | RD.. 0803 |
| Toolholder Style | R217.29 |
| Overall Length (Decimal Inch) | 1.1810 |
| Insert Diameter (mm) | 8.00 |
| Insert Diameter (Decimal Inch) | 0.3150 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Minimum Cutting Diameter (mm) | 17.00 |
| Maximum RPM | 29000 |
| Minimum Cutting Diameter (Decimal Inch) | 0.6693 |
| Modular Connection Size | M12 |
