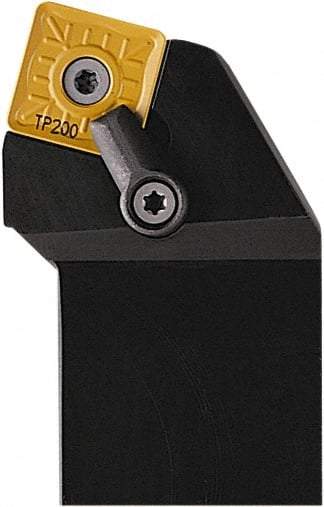

Seco - MSRN, Right Hand Cut, 75° Lead Angle, 50mm Shank Height x 50mm Shank Width, Negative Rake Indexable Turning Toolholder - 300mm OAL, SNMM 2507.. Insert Compatibility, Series Multi-Option
Item #: 60139342
Brand: Seco
Model #: 00199
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | MSRN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Multi-Option |
| Lead Angle | 75 |
| Shank Width (mm) | 50.00 |
| Shank Width (Decimal Inch) | 1.9685 |
| Shank Height (mm) | 50.00 |
| Shank Height (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Insert Compatibility | SNMM 2507.. |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Back of Bar to Cutting Edge (mm) | 53.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.0866 |
| Head Length (mm) | 49.00 |
| Head Length (Decimal Inch) | 1.9291 |
| Insert Inscribed Circle (Decimal Inch) | 1.0000 |
| Toolholder Material | Steel |
