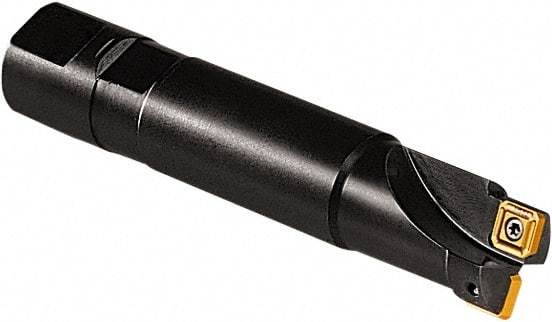

Seco - 26mm Cut Diam, 8mm Max Depth of Cut, 25mm Shank Diam, Indexable Square Shoulder End Mill - Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 60138468
Brand: Seco
Model #: 21690
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 26.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Minimum Cutting Diameter (mm) | 26.00 |
| Minimum Cutting Diameter (Decimal Inch) | 1.0236 |
| Head Length (mm) | 74.00 |
| Head Length (Decimal Inch) | 2.9134 |
| Weldon Flat | Yes |
| Shank Length (Decimal Inch) | 3.8583 |
| Shank Length (mm) | 98.00 |
| Maximum RPM | 21200 |
