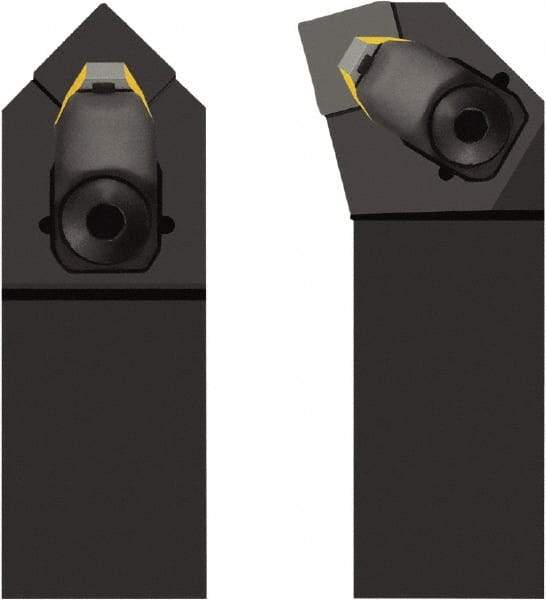

Seco - CSDN, Neutral Cut, 45° Lead Angle, 40mm Shank Height x 40mm Shank Width, Negative Rake Indexable Turning Toolholder - 200mm OAL, SN..1204.. Insert Compatibility, Series Clamp Lock
Item #: 60134186
Brand: Seco
Model #: 04458
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | CSDN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Clamp Lock |
| Lead Angle | 45 |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Insert Compatibility | SN..1204.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 20.30 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7992 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
