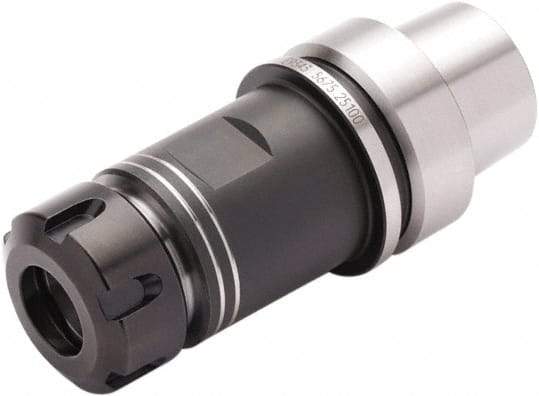

Seco - 0.02" to 0.394" Capacity, 60mm Projection, HSK40E Hollow Taper, ER16 Collet Chuck - 3.15" OAL
Item #: 60134079
Brand: Seco
Model #: 66071
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Hollow Taper |
| Taper Size | HSK40E |
| Projection (mm) | 60.00 |
| Projection (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Maximum Collet Capacity (Decimal Inch) | 0.3940 |
| Overall Length (Decimal Inch) | 3.1500 |
| Nose Diameter (Decimal Inch) | 1.2600 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0004 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.2600 |
