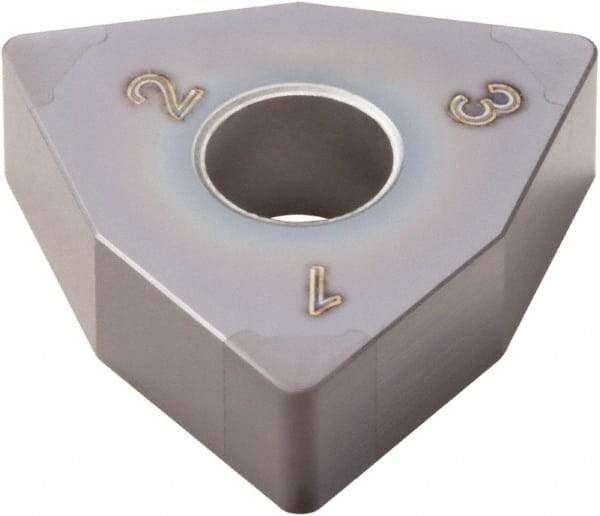

Seco - WNGA432 Grade CBN060K PCBN Turning Insert - TiSiAlN Finish, 80° Trigon, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 60133428
Brand: Seco
Model #: 62802
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | WNGA |
| Insert Size | 432 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | CBN060K |
| Coating | TiSiAlN |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 80 |
| Series | Secomax |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
